Description
Rubber Cable 2PNCT-R/F Used for Equipment
Voltage: 600/1000V, 3000V Or other
Color: Black or by request.
Conductor: Flexible Copper/Tinned Copper
Insulation: Rubber/EPR
Cores: 1,2, 3, 4, 5, 6, 7, 8 Core and more cores
Application: the the application ranges high tension unloader, impact resistance, Stacker & Reclaimer Abrasion Resistance Gantry, Craneetc.
Standard: JIS C3327/IEC/VDE etc
Packaging: Iron or Wooden Drum.
rubber cable technical parameter
| Number | Conductor Composition | Outer Diameter | Thickness of Insulation | Thickness of Sheath | Weight |
| Corexsqmm | Max./mm | mm | mm | mm | kg/km |
| 3×16 | 0.26 | 6 | 1.2 | 2.3 | 930 |
| 3×25 | 0.26 | 7.4 | 1.2 | 2.5 | 1290 |
| 3×35 | 0.26 | 8.7 | 1.2 | 2.7 | 1650 |
| 3×50 | 0.26 | 10.4 | 1.5 | 3 | 2290 |
| 3×95 | 0.26 | 14.5 | 2 | 3.7 | 4170 |
| 3×120 | 0.26 | 16.2 | 2 | 4 | 5090 |
| 3×150 | 0.26 | 18.2 | 2 | 4.2 | 6150 |
| 3×185 | 0.26 | 20.2 | 2.5 | 4.6 | 7710 |
| 4×25 | 0.31 | 7.4 | 1.2 | 2.7 | 1790 |
| 4×35 | 0.31 | 8.7 | 1.2 | 2.9 | 2290 |
| 4×50 | 0.31 | 10.4 | 1.5 | 3.2 | 3160 |
| 4×95 | 0.31 | 14.5 | 2 | 4 | 5720 |
| 4×120 | 0.31 | 16.2 | 2 | 4.3 | 6980 |
| 4×150 | 0.31 | 18.2 | 2 | 4.6 | 8450 |
| 4×185 | 0.31 | 20.2 | 2.5 | 5.1 | 10690 |

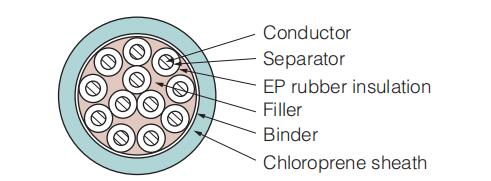

The Feature of CUR-2PNCT (Festoon System)
– High flexibility and bending resistance.
(however, not suitable for applications where
cables are subjected to lateral pressure, such
as carrier drum system)

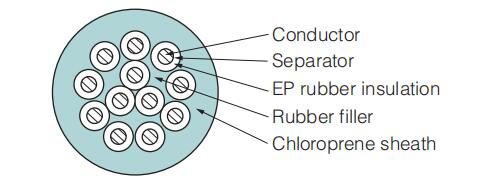

The Feature of CAR-2PNCT (Carrier DrumSystem)
High resistance to lateral pressure.
– Reduced cable corkscrewing by making rubber
sheath solidal structure.
– Robust type of chloroprene is used as sheath.
The Feature of RE-2PNCT (Carrier Drum System)
– High resistance to lateral pressure.
– Reduced cable corkscrewing by making rubber
sheath solidal structure.
– Robust type of chloroprene is used as sheath.

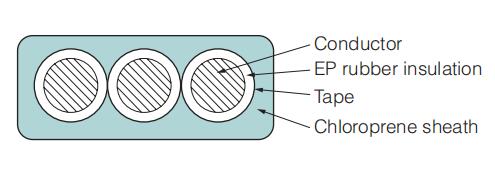

The Feature of H-2PNCT (Reel System)
– High resistance to lateral pressure and wear.
– Robust type of chloroprene is used as sheath.
– Weather Resistance, Flame Retardance,Bending Resistance
– Suitable for Unloader, Stacker & Reclaimer etc

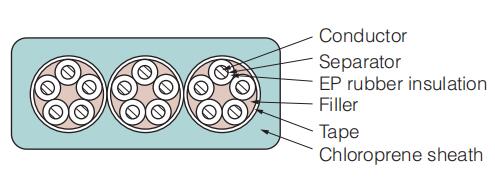

The Feature of SK-2PNCT (Festoon System)
– High flexibility and bending resistance.
(however, not suitable for reeling system)
– More efficient cable installation because of its
smaller bending radius than those of round cable.

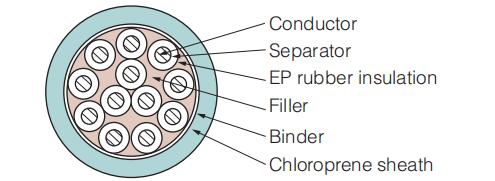

The Feature of TOR-2PNCT (Torsion System)
– High torsion resistance.
– Improved slipping performance between cores by
individually taping on each core.
